Novo | Vendidos
Descrição
VR
Produto Descritivo
Product Usage
Detalhes Imagens
|
Processor
|
||
|
CPU
|

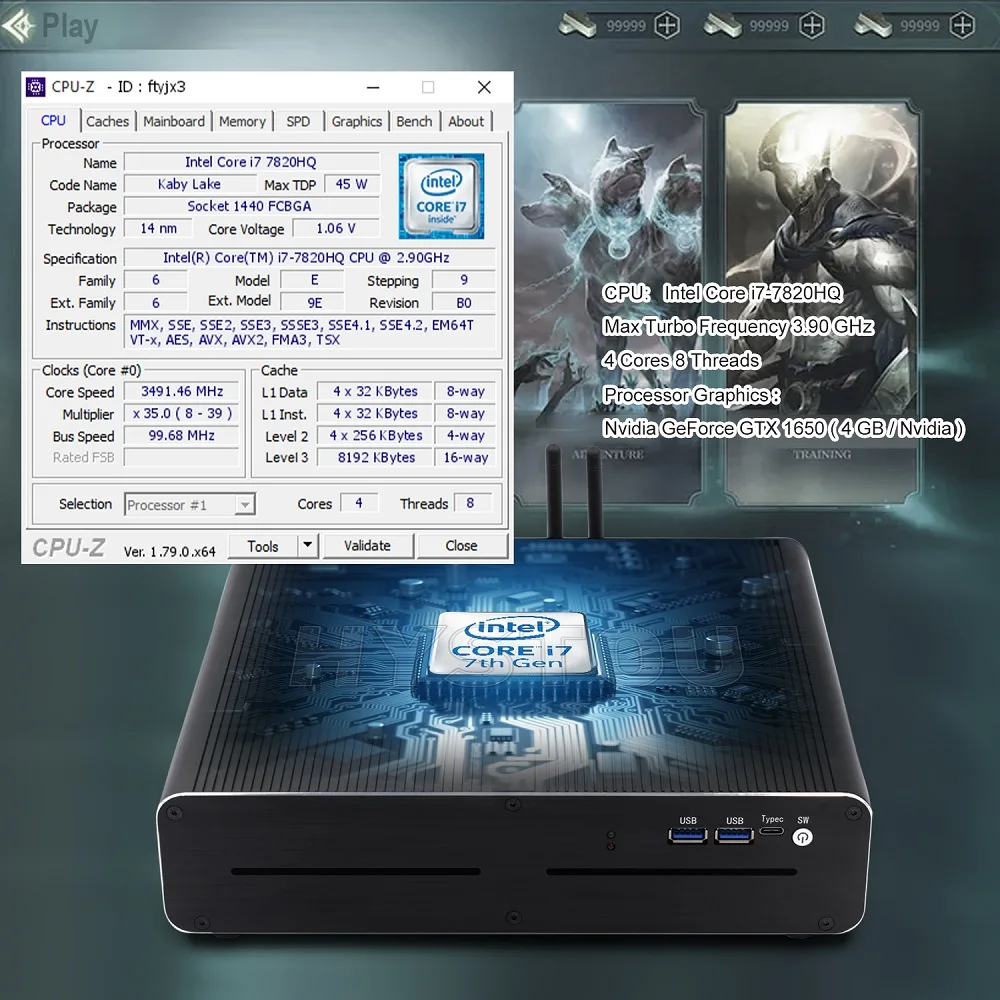

In-tel® Core™ i7-7820HQ Processor (8M Cache, 4 Cores 8 Threads, Base Frequency 2.90 GHz Turbo Frequency 3.90 GHz)
|
|
|
TDP
|
45W
|
|
|
CPU Lithography
|
14 nm
|
|
|
Memory Specifications
|
||
|
Max Memory Size
|
64GB
|
|
|
Memory Types
|
260 pin DDR4 SO-DIMMs
|
|
|
Memory Channels
|
Dual Channels
|
|
|
ECC Memory
|
Don’t support
|
|
|
Storage Specification
|
||
|

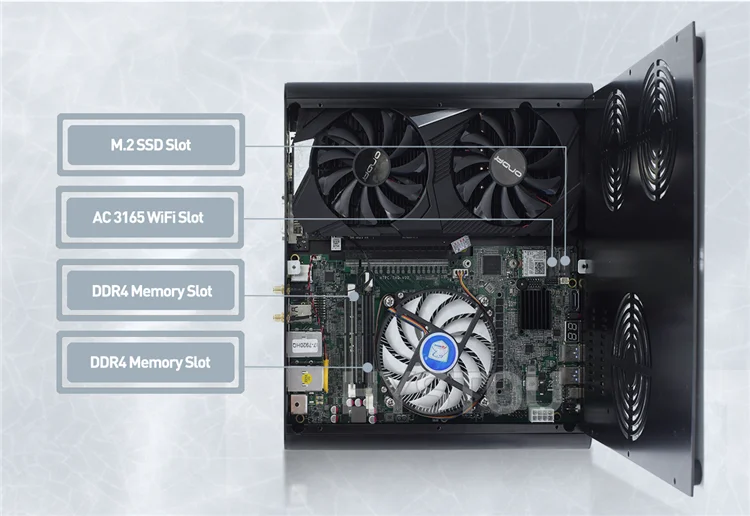

m.2 SSD
|
1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME)
|
|
|
SATA
|
1 x SATA3.0 for 2.5 inch HDD/SSD
|
|
|
mSATA
|
NO mSATA slot
|
|
|
Graphics
|
||
|
Processor Graphics
|

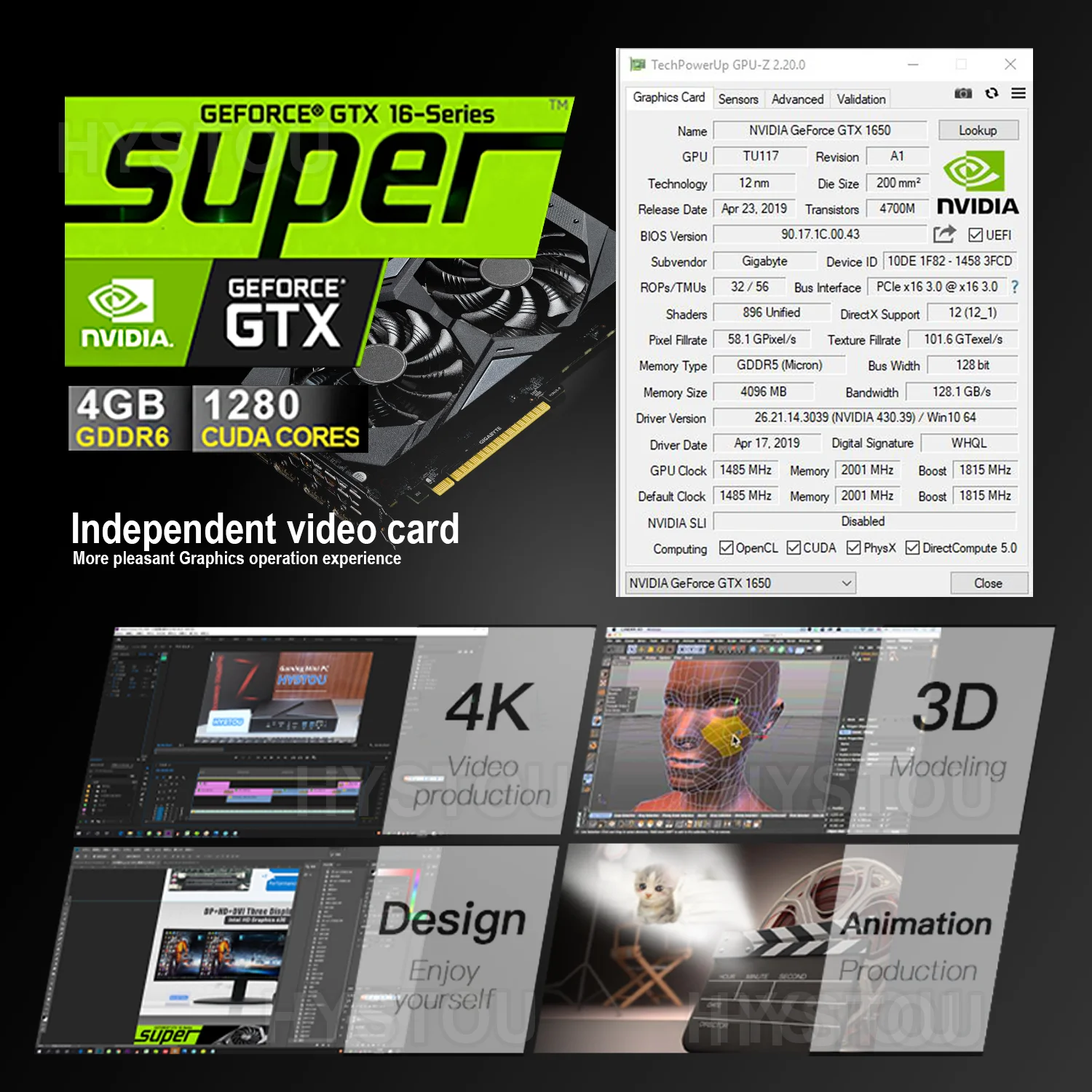

In-tel® UHD Graphics 630 + NVIDIA GeForce GTX 1650 4GB
|
|
|
HD
|
1 x HD(4K)
|
|
|
DP Port
|
1 x DP Port (4K)
|
|
|
DVI Port
|
1 x DVI Port
|
|
|
Power Specification
|
||
|
Power Adapter
|
19V Power Input, supply 19V 7A power adapter within the package
|
|
|
Auto Power On
|
Support Auto Power On Function
|
|
|
In & Out interfaces
|
||
|
USB Port
|
6 x USB 3.0 port, 2 x USB 2.0 port, 1 x Type C USB 3.1 port
|
|
|
Audio
|
3.5mm MIC in & SPK out
|
|
|
Video
|
HD+ DP + DVI 3 display output
|
|
|
Power Input
|
19V In
|
|
|
Lan Port
|
2 x RJ45 Lan, In-tel I211 Gigabit Ethernet Controller
|
|
|
Wi-Fi
|
Inside 433 Mbps & Blue-tooth 4.2
|
|
|
Others
|
||
|
System
|
Support Windows 7/10, Linux
|
|
|
Case Material
|
Aluminum Alloy
|
|
|
Dimension
|
Mini PC size 270 x 240x65mm
Package size 390 x 290 x 106mm |
|
|
Weight
|
Net weight 2.6kg; Gross weight 3.6 kg
|
|
