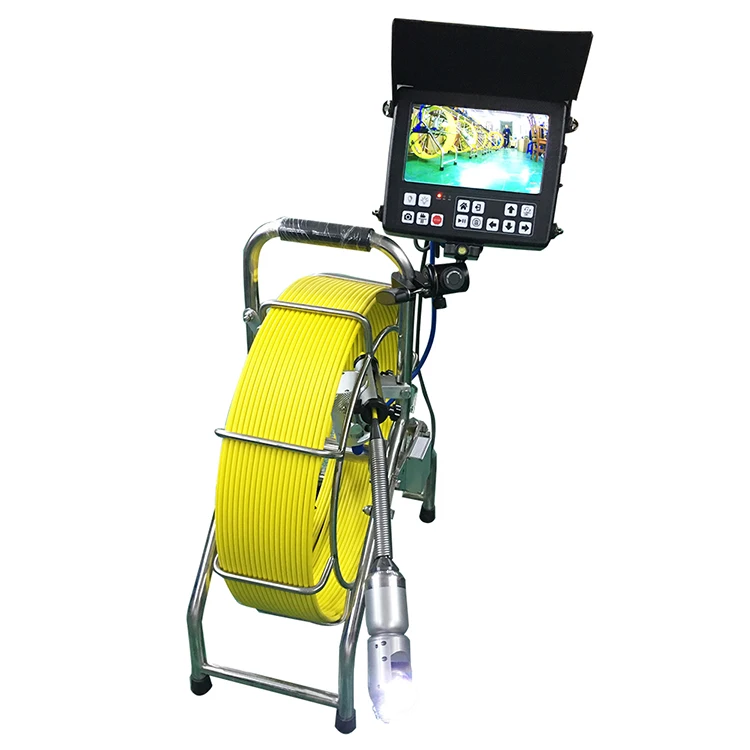

Sistema de Câmera de Inspeção de Esgoto Witson Hd Pan Tilt Tubo Dreno com Cabo Push de 60m

Features:

1.Sewer Inspection System with HD Pan-and-Tilt Camera head

 (360°Rotation Camera Head), 1.3MP High Resolution Camera head

2.Almost 360°pan and 180°tilt view for fully survey and check

3.Ø 50mm Interchangeable Camera Head with Aluminum Housing

4.IP68 Waterproof Sewer Camera Head

5.High Resolution Color CMOS

6.Built-in Powerful LEDs to Maximize Illumination

7.60M or 120M Push Rod

8.Portable 8.0’’ TFT LCD Monitor DVR Controller with USB interface

9.Built in 512Hz Sonde optional

10.Centering Skids for Increase Visibility and Maneuverability in the Pipeline

11.Battery-Powered Operation

Product details:

Camera head

Camera size Ø50mm x 154mm, sensor 1/3" CMOS, 1.3MP pixel

Pan: 360°  Tilt:180° (Almost)

Horizontal resolution: 700TV Lines

Camera head Housing: Aluminum/Stainless steel

Illumination: 6 Super Bright White LEDS

Brightness of the LEDS: Adjustable

View Angle: 120°

Focus: Auto

Auto Home Position

Dust- and Waterproof: IP68

512Hz Built in sonde (optional)

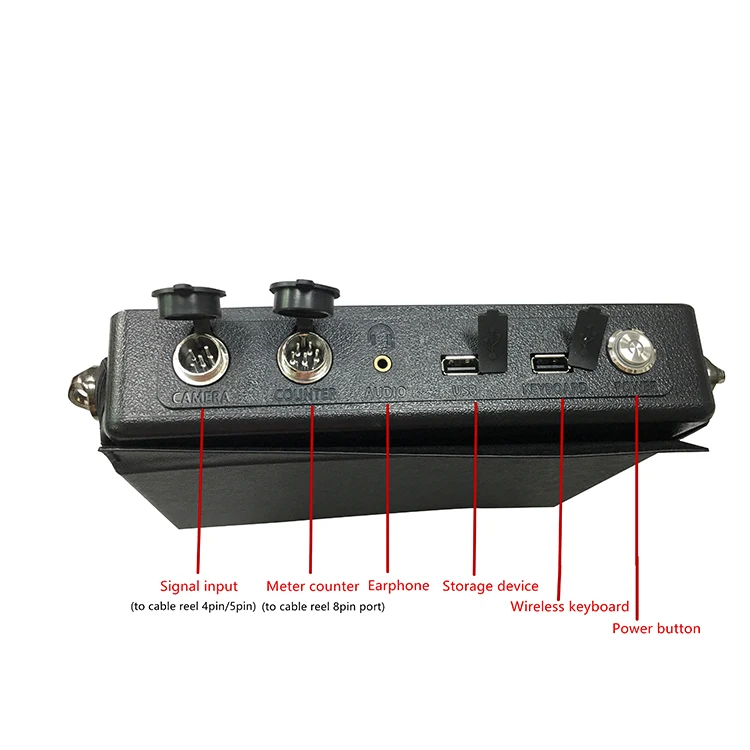

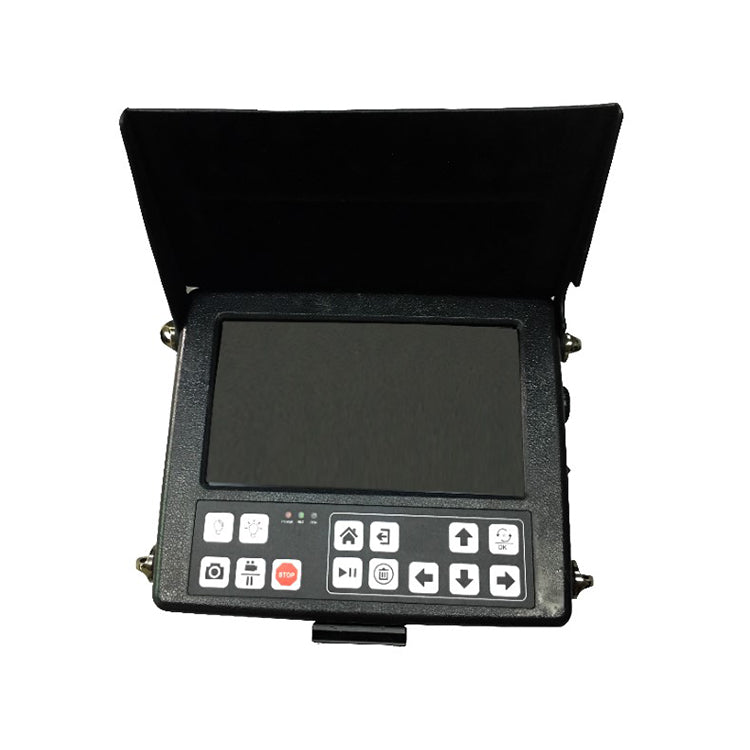

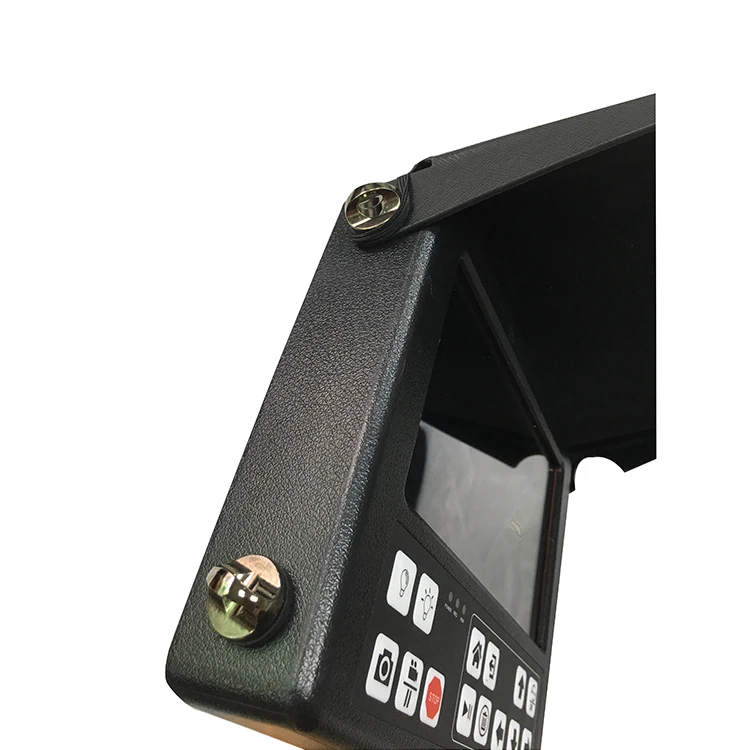

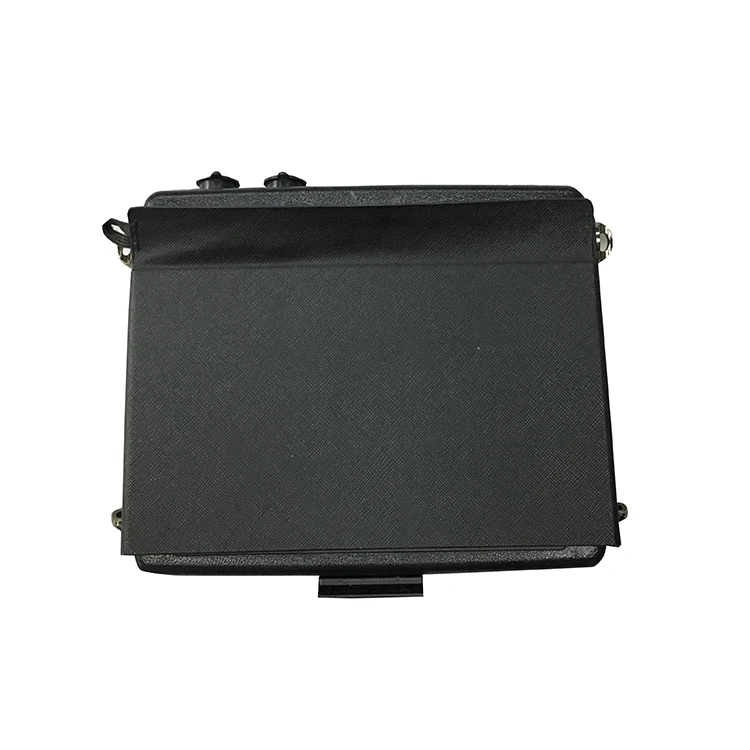

Portable Display & DVR Controller: :

ü Portable 8"HD IPS LCD Screen, Easy Handling

ü 1280X720 resolution

ü Waterproof control panel

ü HD DVR System, 720P Video Recording, Audio Record, Snapshot

ü USB wireless Keyboard real time typewriting

ü Digital meter counter function and OSD(On Screen Display)

ü Built-in 7000mA rechargeable Li-ion Battery Pack

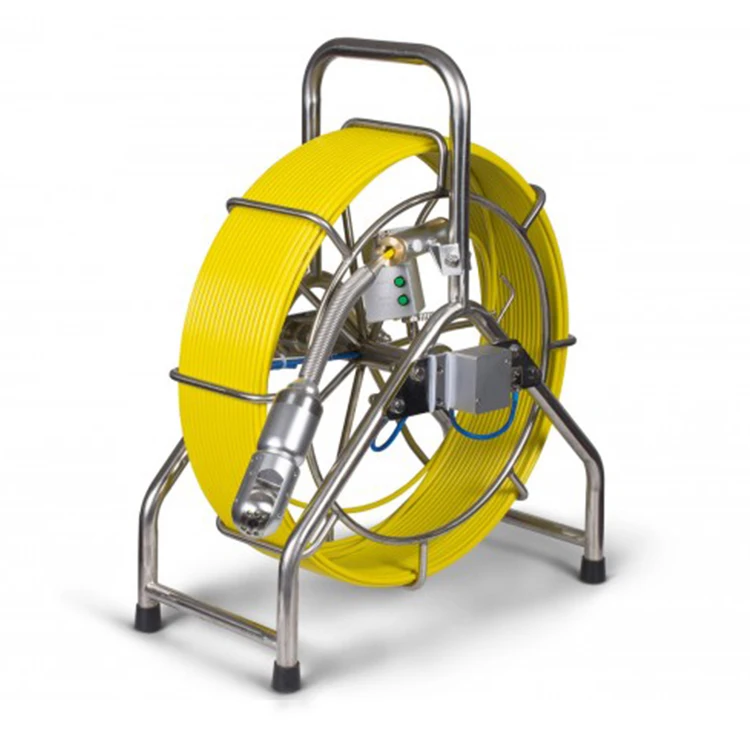

Push Cable and Reel:

Cable diameter: 6.5-7.00 mm

Standard working length: 60M

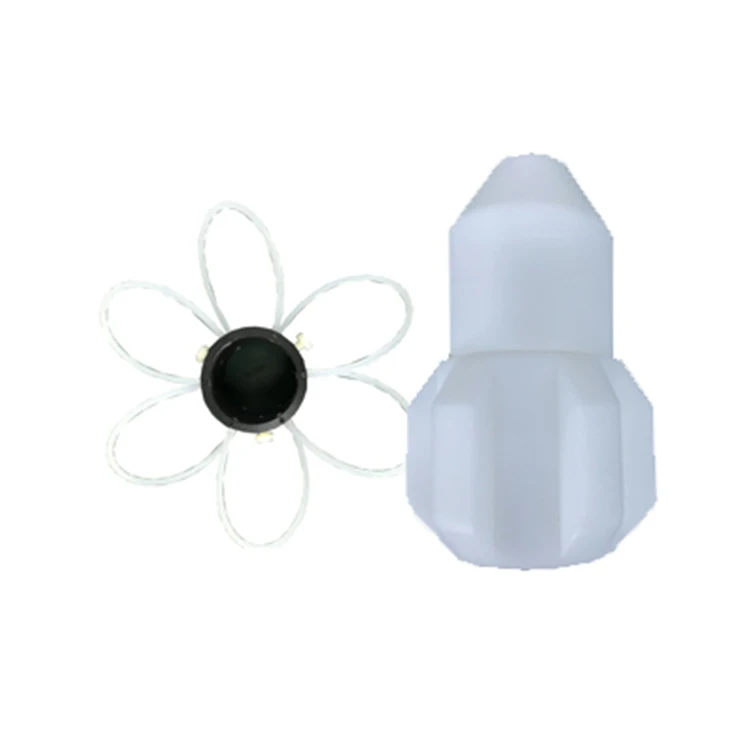

Centering Skids

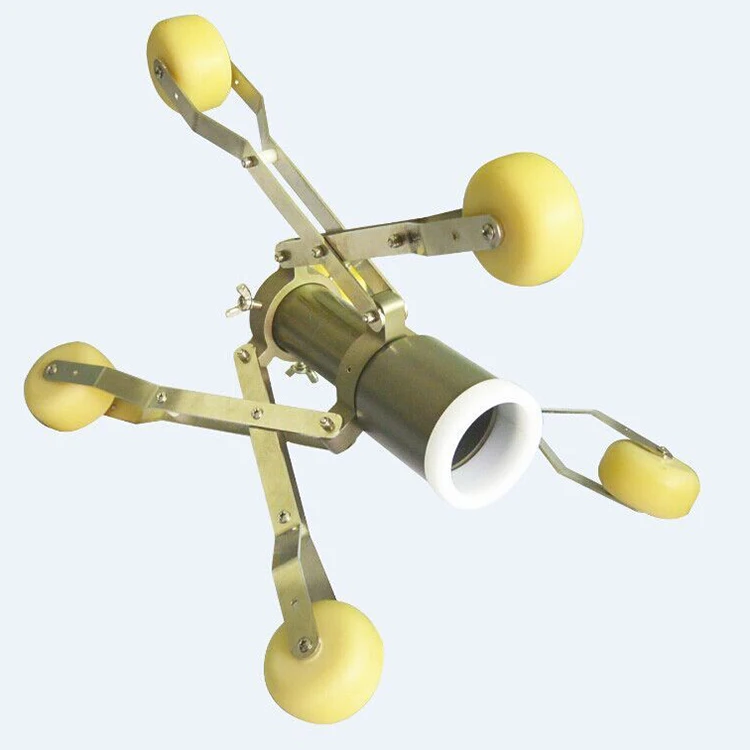

Optional Roller Skid for large diameter pipes

Package Information

The whole system is packed in two cartons:

1.  The cable Reel+ Camera:

G. W.: 25.00KG

Packing Measurement: 60x36x70CM

(Charging weight: 31.00KG by courier)

2. The Portable monitor DVR controller

H. W.: 8.00KG

Packing Measurement: 40X30X30CM

Total Charging weight: 39.00KGS
