IP66 Camera 2MP 1080P CCTV 8CH System Surveillance Kit, WIFI NVR 1080P

Main features:
1. HD video output
2. Automatic connection with IP, save installation costs
3. Plug and play, P2P service

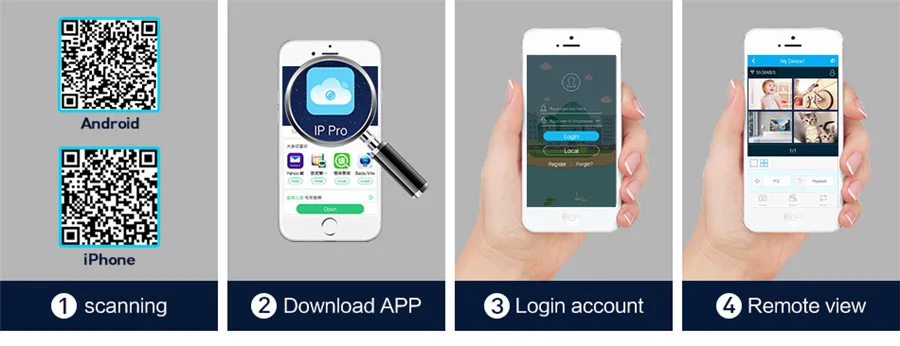

4. Mobile view, app for iphone and android
5. Free DDNS: www.e-seenet.com, no DDNS setup required
Item specifics 8 pcs960P camera
1pcs 8ch 1080P NVR
1pcs network cable
1pcs12V 3A+8pcs 12V 1A CD power supply
user manual in english
(CMS, mobile app, manual), mouse
wireless NVR Specification
Model K9508W/K9608W
Integrated operating system Linux OS
AV (audio/video) input 8CH Network Video
Broadbank 72Mbps network video input
Audio Bitrate 64Kbps
AV (audio/video) output HDMI input 1ch, resolution: 1024x768, 1366x768,
1440x900, 1920x1080p
1ch VGA output, resolution: 1024x768, 1366x768,
1440x900, 1920x1080p
AV CODEC Specification Video Resolution D1/720P/960P/1080P
8CH playback sync
Video/Capture Mode Maual, Time, Motion, Alarm
Playback mode Realtime, Routine, Event backup
USB backup
Alarm 4-channel alarm input (optional)
1 channel alarm output (optional)
Hard disk type 1*SATA interface
Maximum capacity 4TB for each
external interface Network interface 4 network ports for K9508W, 1 network port for K9608W
USB Interface 2 USB for K9508W, 1 USB for K9608W
Network Control Protocol UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)
DHCP (Obtain an IP address automatically), etc…
Other Power Supply DC12V 3A
Power Consumption (W) ≤5W(Without HDD)
Operating temperature (°C) -10℃~+55℃
Working humidity (%) RH 10%~90%

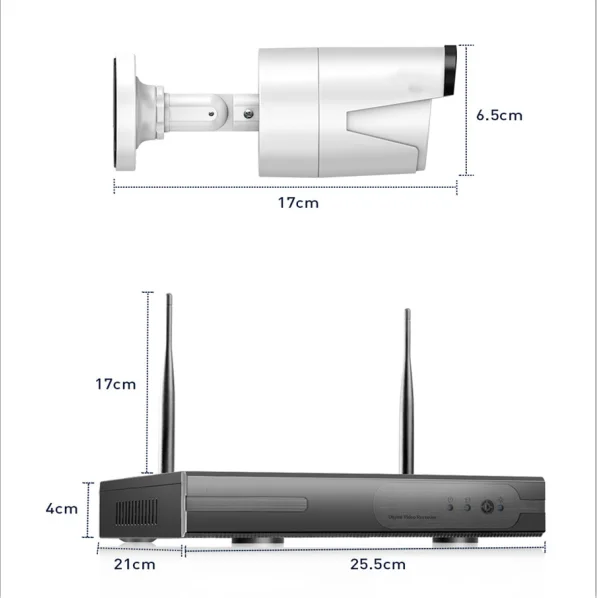

Size 257mm(L)×210mm(V)×45mm(H)
Weight(excluding HDD) ≤1Kg
IPC specification
Technical Parameters Model PE3010C/PE3013C/PE3020C
Sensor 1/4” Progressive Scan Sensor 1/3” Progressive Scan Sensor
signal system
Resolution PAL/NTSC 1280 x 720 16 : 9 High Definition 1280 x 960 4 : 3 High Definition
Minimum Illumination Color: 0.1 Lux; B/W: 0.01 Lux
Shutter 1/25s to 1/25,000s
3.6MM OSD Lens
Date Time and Title
Automatic White Balance
Auto Day and Night / Color / Black
3D-DNR automatic mirroring
/Flip On / Off
Frame Specification Three transmissions at the same time:
H.264 1280x720@25fps or lower
H.264 640x480@25fps or lower Three streams at the same time:
H.264 1280x960@15fps or lower
H.264 640x480@25fps or below
S/N > 39.1 Db
Interface RJ45 / WIFI 802.11b/g/n
General specification Anti-thunder level Standard IEC61000-4-5
Working temperature/humidity -10℃ to +50℃ / 30% to 80% RH
Storage temperature/humidity -20 ℃ to +60 ℃ / 20% to 90% RH
DC12V-1A power input
Power Consumption ≤6W
Size 205(L)×70(L)×55 (H)mm
Weight 500g
IP66 Protection Level
