800W Wind + 600W PV Hybrid Wind Solar Charge Controller, WIFI GPRS 1400W

Disponivel em estoque.


Price:
Translation missing: en.product.general.sale_priceR$ 4.166,17

ou por 12x de R$ 398,56

Estamos preparando sua promoção!
Garantia de 30 dias direto em nossa loja
7 dias para trocas e devoluções

Description

Product Introduction
MPPT Hybrid Wind Solar Charge Controller

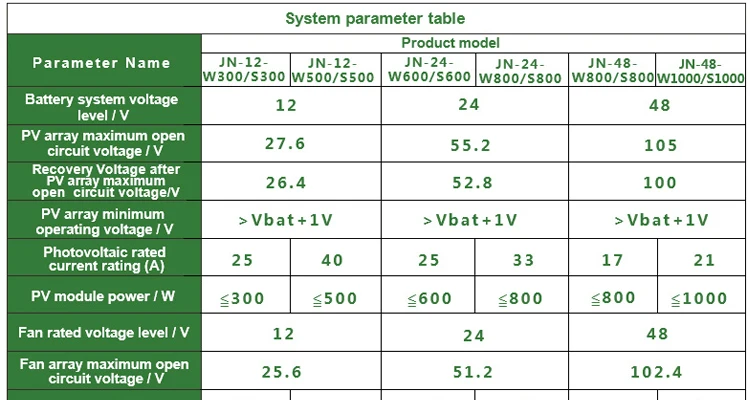

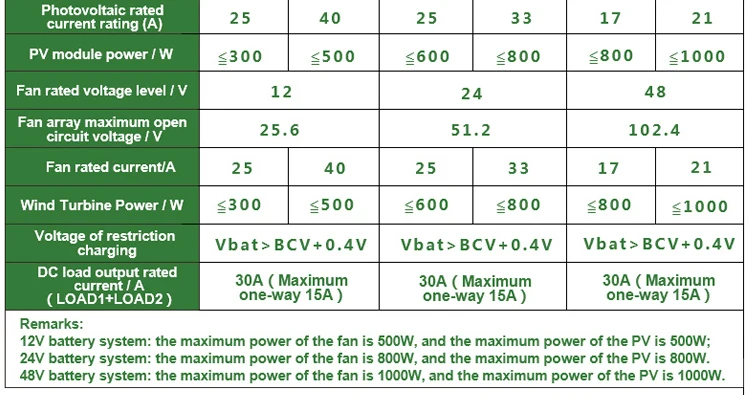

Product Parameters

Hybrid Wind Solar Charge Controller

Hybrid Wind Solar Charge Controller

Product Details

Hybrid Wind Solar Charge Controller



12/24V auto and 48V independent system




Fit all kind of batteries, Lead acid, Gel, LIFEPO4, LiNiCoMn



▷ Advanced MPPT maximum power point tracking technology, tracing efficiency > 99.5%, maximum conversion efficiency > 98%; full-load efficiency can reach 97%



Hybrid Wind Solar Charge Controller




Dump load resistance is default part, no need pay additional for it


▷ Comprehensive protection functions : overcharge, over discharge and overload etc

In the high wind speed or fan's power is beyond scope of battery and load absorption, controller immediately launched step-less unloading resistance protection system



Remote Monitoring by three ways: computer monitoring; WIFI by mobile phone; GPRS by mobile phone


Fan three-stage charging mode: MPPT charging - Lifting charging - floating charging-



Photovoltaic three-stage charging mode: CC constant current- lifting charging- floating charging-



It has various load control modes, DC load has two route outputs, output power and time can be set

▷ Time Control: street light & household Street light mode: time can be set by UP & DOWN keys, default Value “15H”, you can set other hours as you want, this time set is street light work time at night.
Household mode: time is “24H”, it means DC load need work at 24H
